PCIe 7.0 Switch
The Rambus PCI Express® (PCIe®) 7.0 Switch is a customizable, multiport embedded switch for PCIe designed for ASIC and FPGA implementations. It enables the connection of one upstream port and multiple downstream ports as a fully configurable interface subsystem. It is backward compatible to PCIe 5.0.
Contact

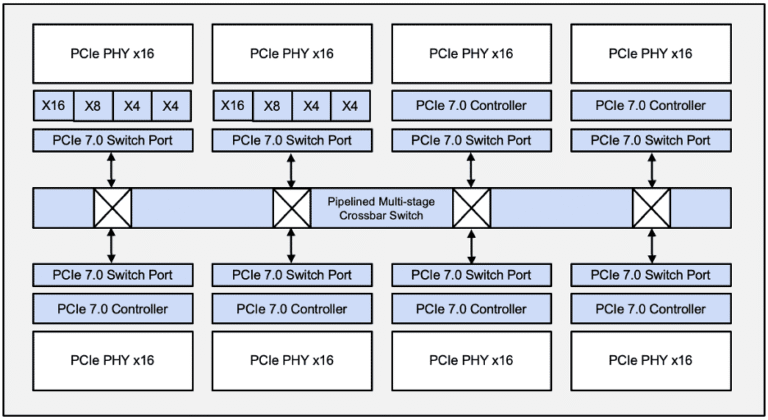

Product BriefHow the PCIe 7.0 Switch Works
The PCIe 7.0 Switch is the first embedded PCIe 7.0 switch IP available on the market and enables designers to use fewer PCIe PHYs, saving latency, power consumption and bill-of-material costs. The PCIe switch IP transparently manages upstream-downstream data flow as well as peer-to-peer transfers between downstream ports, delivering the flexibility, scalability and configurability required for connecting multiple devices, including NVMe SSDs.
Data Center Evolution: The Leap to 64 GT/s Signaling with PCI Express 6.1
The PCI Express® (PCIe®) interface is the critical backbone that moves data at high bandwidth and low latency between various compute nodes such as CPUs, GPUs, FPGAs, and workload-specific accelerators. With the rapid rise in bandwidth demands of advanced workloads such as AI/ML training, PCIe 6.1 jumps signaling to 64 GT/s with some of the biggest changes yet in the standard.
Solution Offerings
- Configurable from PCIe 7.0 x8/ PCIe6x16 @1GHz clock down to PCIe 5.0 x1
- Highly scalable with up to 31 configurable external or embedded endpoints
- Configurable Egress Buffer for non-blocking output queueing switch performance
- Flit mode to non-Flit mode conversion
- Low power optimized
- Superior performance through a nonblocking architecture
- Minimized footprint
- Allows seamless migration from FPGA prototyping design to ASIC/SoC production design with same RTL
- Reliability demonstrated through stringent verification and validations
- Wizard
- Switch Development Platform (equivalent to a reference design) with several configurations available
- Documentation (User Guide)
- Technical support and maintenance updates
Advanced Design Integration Services:
- Integration of commercial and proprietary PCIe PHY IP
- Development and validation of custom PCIe PCS layer
- Customization of the Controller IP to add customer-specific features
- Generation of custom reference designs
- Generation of custom verification environments
- Design/architecture review and consulting
